Description

(1) Body of the hydraulic press is a bridge-type designed with thickened integrally formed side walls and a high-strength machine structure.
(2) Able to take production orders for deep-drawing hydraulic presses with forming capacity between 100 and 2000 tonnes.
(3) High-precision hydraulic press incorporated with 8-sided guide rails to combat eccentric loads.
(4) Copper plate slide table design enables the middle plate to descend faster and smoother.
(5) Tian Feng's specially designed logical circuit achieves increased safety and higher speed.
(6) Comes with touch screen HMI allows users to easily and quickly adjust and begin production immediately.
(7) HMI is able to control 4 speeds, position restrictions, and output tonnage.

Optional Introduction

• Front and rear side photoelectric safety protection device or PSDI light curtain activation system
• IE3 energy-saving motor
• Servo energy-saving motor
• Automatic oil lubrication system
• Table removal system (for convenient large mold changes)
• Automatic loading and unloading robotic arm
• Quick die change device (Q.D.C)
• Automatic mold clamping device
• Hydraulic ejector device for the pressure plate
• Independent hydraulic oil cooler
• Punching and shearing buffer

Scope of application:

• Punching
• Cutting
• Trimming
• Deep-draw forming
• Forge forming

Applicable industries:

• Bicycle manufacturing
• Fitness equipment manufacturing
• Automotive manufacturing
• Sheet metal
• Aerospace
• Hardware manufacturing
• Forging

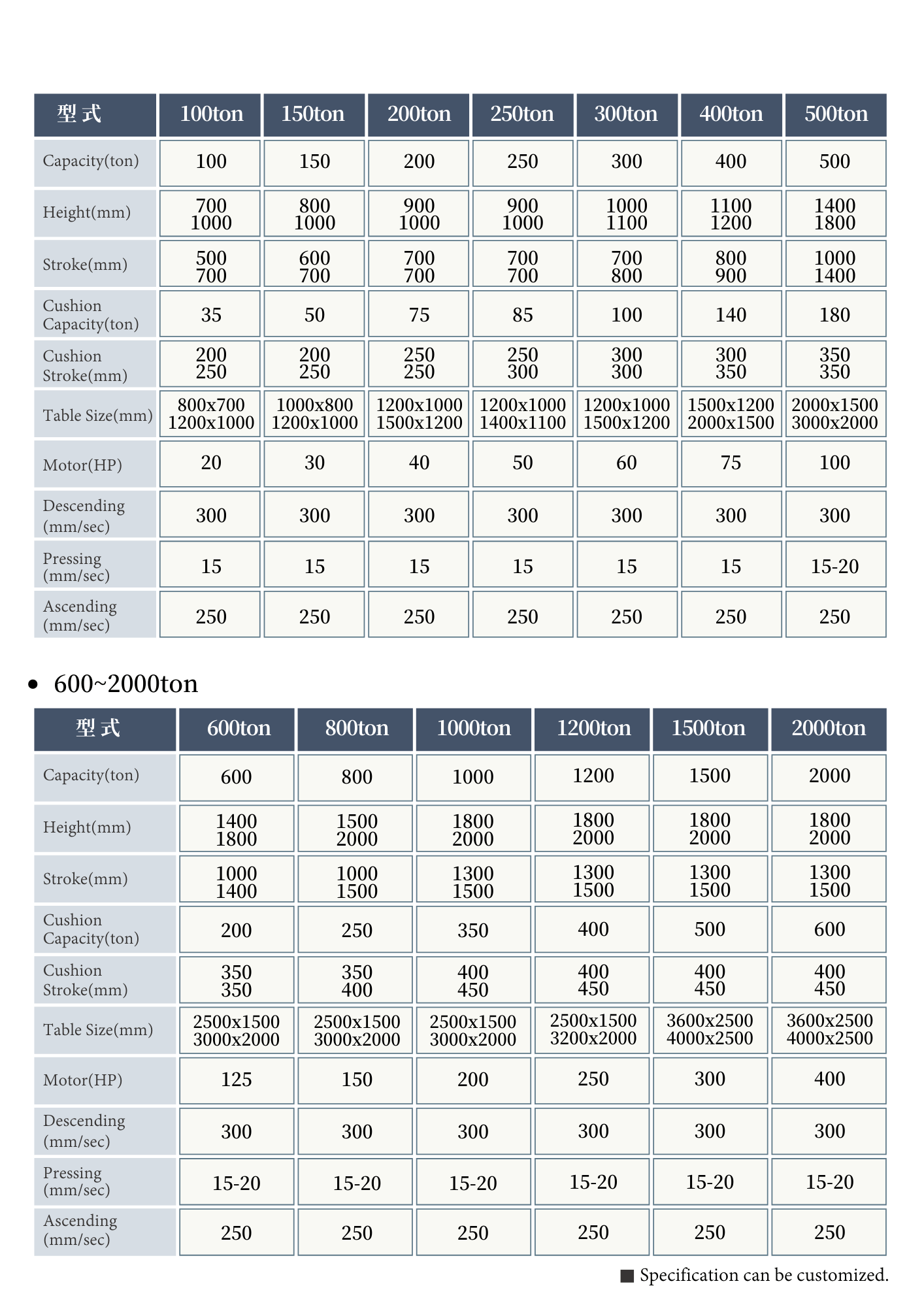

The specification is Deep Drawing type, if you need deep drawing type, please contact us.

※Size of table and specification can be customized. Please specify when ordering.※
