TPM-Forging Deep Drawing Hydraulic Press

Pressure Capacity: 100 to 2000 tonnes.
More information as follows:

Specification
Stock
Inquiry
Share
Hydraulic Press Description Dimension Drawing Reference Video

Description

(1) Body of the hydraulic press is a bridge-type designed with thickened integrally formed side walls and a high-strength machine structure.
(2) Able to take production orders for deep-drawing hydraulic presses with forming capacity between 100 and 2000 tonnes.
(3) High-precision hydraulic press incorporated with 8-sided guide rails to combat eccentric loads.
(4) Copper plate slide table design enables the middle plate to descend faster and smoother.
(5) Tian Feng’s specially designed logical circuit achieves increased safety and higher speed.
(6) Comes with touch screen HMI allows users to easily and quickly adjust and begin production immediately.
(7) HMI is able to control 4 speeds, position restrictions, and output tonnage.


Scope of application:

  • Punching
  • Cutting
  • Trimming
  • Deep-draw forming
  • Forge forming

Applicable industries:

  • Bicycle manufacturing
  • Fitness equipment manufacturing
  • Automotive manufacturing
  • Sheet metal
  • Aerospace
  • Hardware manufacturing
  • Forging

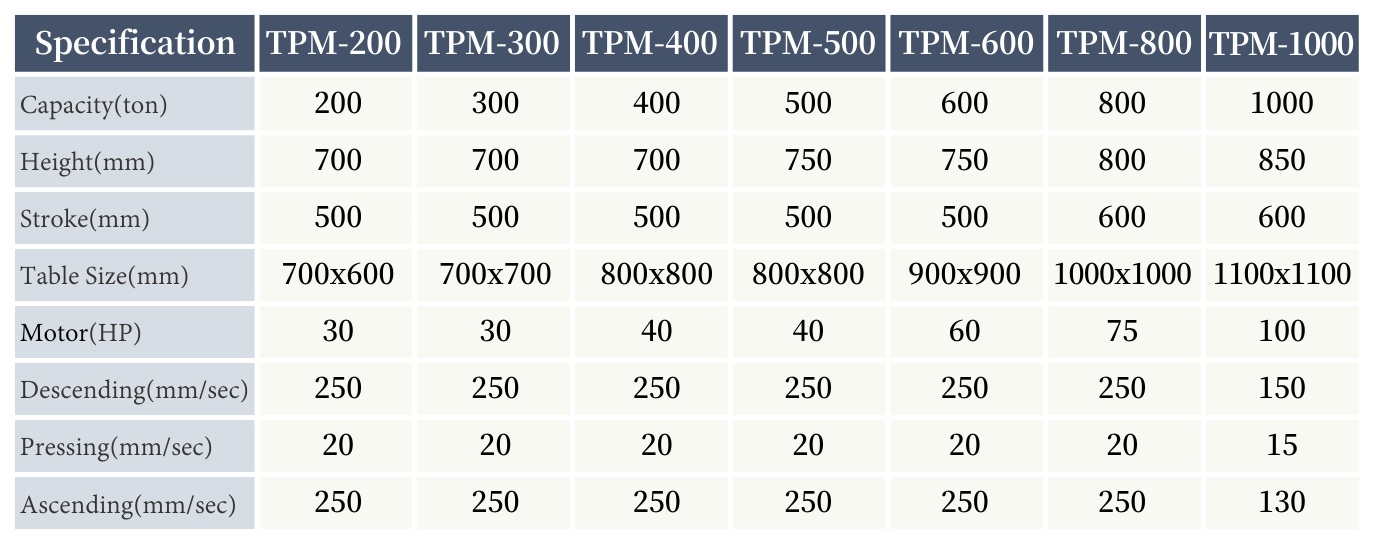

The specification is forging type, if you need deep drawing type, please contact us.

※Size of table and specification can be customized. Please specify when ordering.※



Optional Introduction

  • Safety light curtain and acrylic protection
  • Vibrator bowl
  • Runner stripper
  • Side hole
  • Self-acting lubricator
