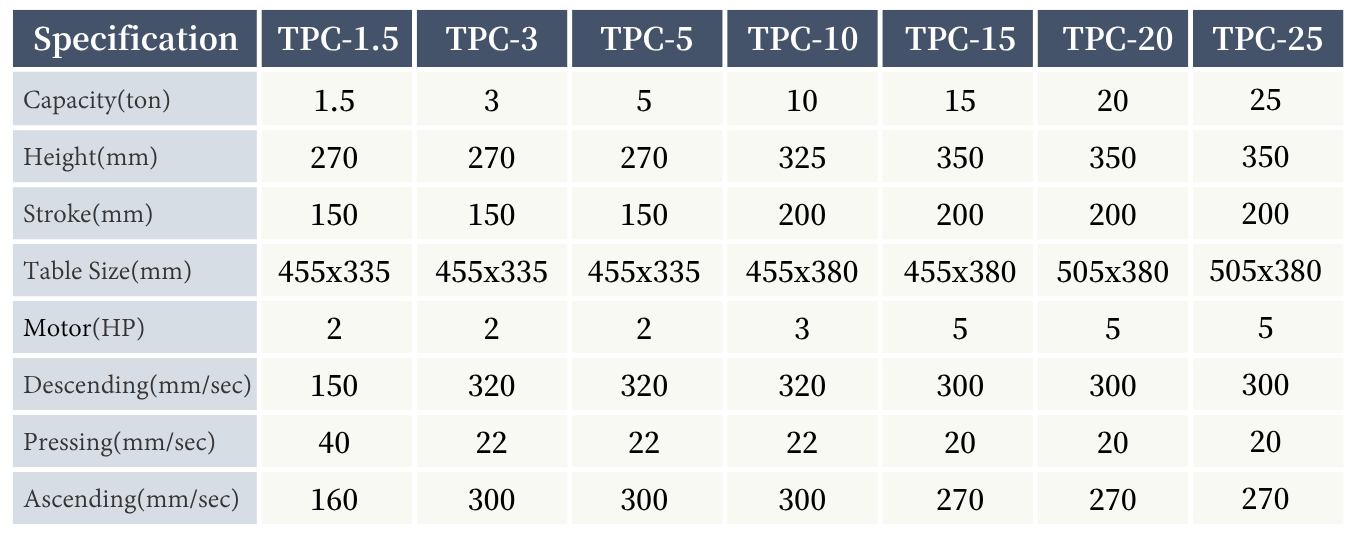

Specification
Dimensional Drawing
Reference video
Description
(1) Body of the hydraulic machine is a C-type design to offer a flexible 3-way operating space for (un)loading workpieces and molds.
(2) Able to take production orders for C-type hydraulic presses capacity between 1 and 20 tonnes.
(3) Flexible operating space design for (un)loading.
(4) Easy operation/ High speed/ High safety/ Good quality/ Less consumables.
(5) Precise mechanical BDC, position can be adjusted easily.
(6) Hidden oil tank design combined with hidden wheels for easy transportation.
Control type:
- Standard
-Two Hands Start Buttons
-Manual/Auto operation
-Timmer
-Counter
-Quickly to precise adjustment of Oil pressure, head punch location, and lower dead point
- Digital
-7-inch HMI to control capacity, speed, and position
-Position sensor
-Memory parameter setting(It's can be set various mold of capacity, speed, and position)
-Ultra-low noise and energy saving
Scope of application:
- punching
- cutting
- riveting
- bearing inserting
- PE sheet trimming
- parts riveting
Applicable industries:
- electronics and optoelectronics
- bicycle manufacturing
- fitness equipment manufacturing
- automotive manufacturing
- hand tools
- hardware manufacturing
