Description
(1) Adopts a special design featuring a strong circular guided post integrated with precise bearing sleeves and a three-plate middle plate.
(2) The four-post press offers high pressing precision and smooth operation without offset.
(3) It descends quickly, applies pressure slowly to form the part, and then ascends quickly, greatly increasing production efficiency while protecting the mold.
(4) Maintenance is easy, with simplified wiring that effectively prevents hydraulic fluid leakage.
(5) Precision: With four-post guiding, this press achieves high precision in forming, making it suitable for applications with stringent requirements.
(6) Versatility: It is adaptable to various materials and processes, including deep drawing, forging, cutting, and pressing.
(7) Safety: Typically equipped with multiple safety features, such as overload protection and emergency stop devices, to ensure safe operation.
(8) Automation: Modern models may include automated control systems that allow for easy adjustments of pressure, speed, and stroke, enhancing production efficiency.
Control type:
- Standard
-Two Hands Start Buttons
-Manual/Auto Operation
-Timmer
-Counter
-Quickly to precise adjustment of Oil pressure, head punch location, and lower dead point
- Digital
-7-inch HMI to control capacity, speed, and position
-Position sensor
-Memory parameter setting(It's can be set various mold of capacity, speed, and position)
-Ultra-low noise and energy saving
Optional Accessories
- Safety Light Curtain
- Load Cell (Pressure Sensing System)
- Vibratory Feeder
- Feeding Mechanism
- Automated Integration
- Material Ejector
- Slide Table Mechanism
- Quick Die Changer
- Drop Hole
Scope of application:
- Punching
- Cutting
- Riveting
- Deburring
- Parts Forming
Applicable industries:
- Casting
- Aerospace
- Sheet Metal
- Automotive manufacturing

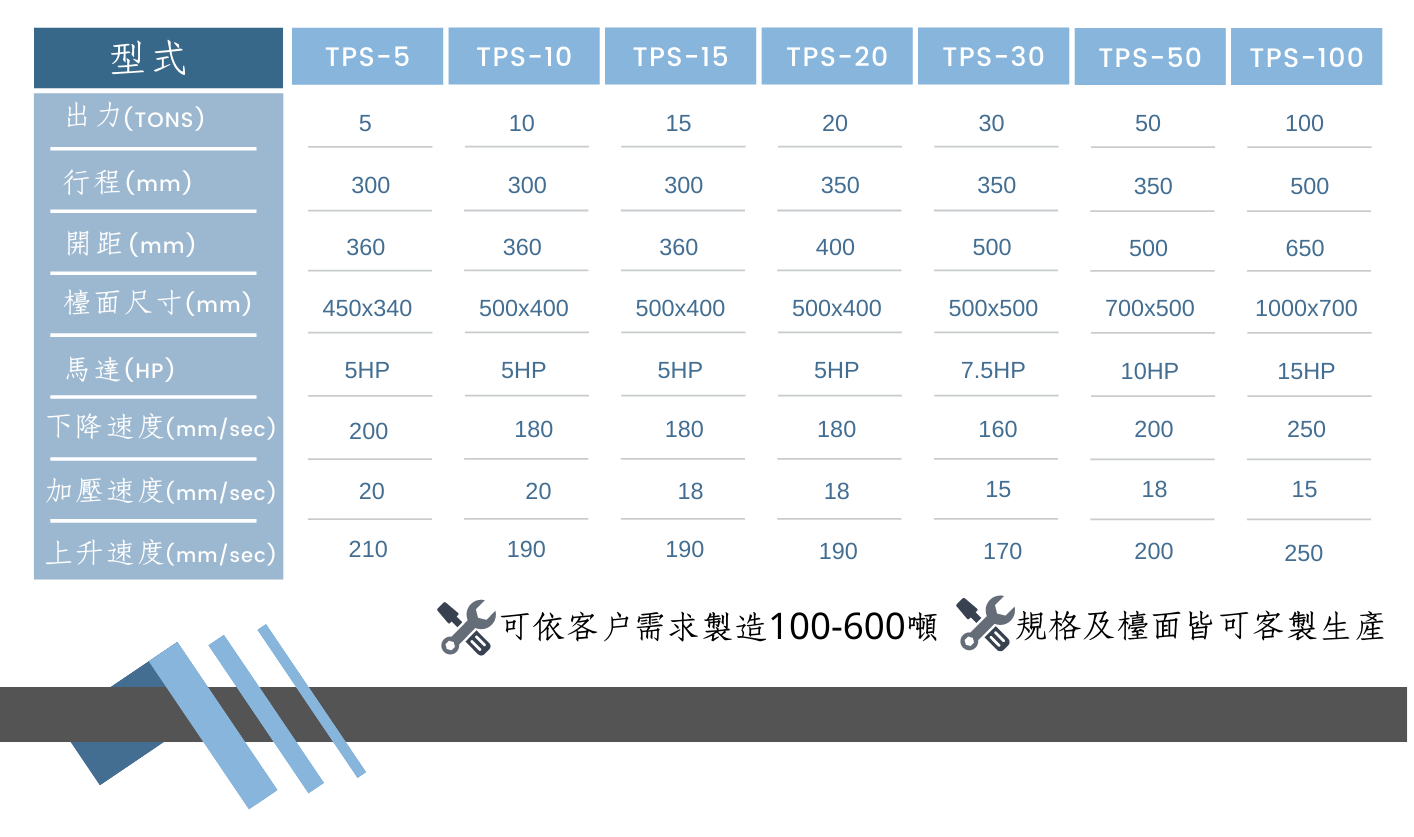

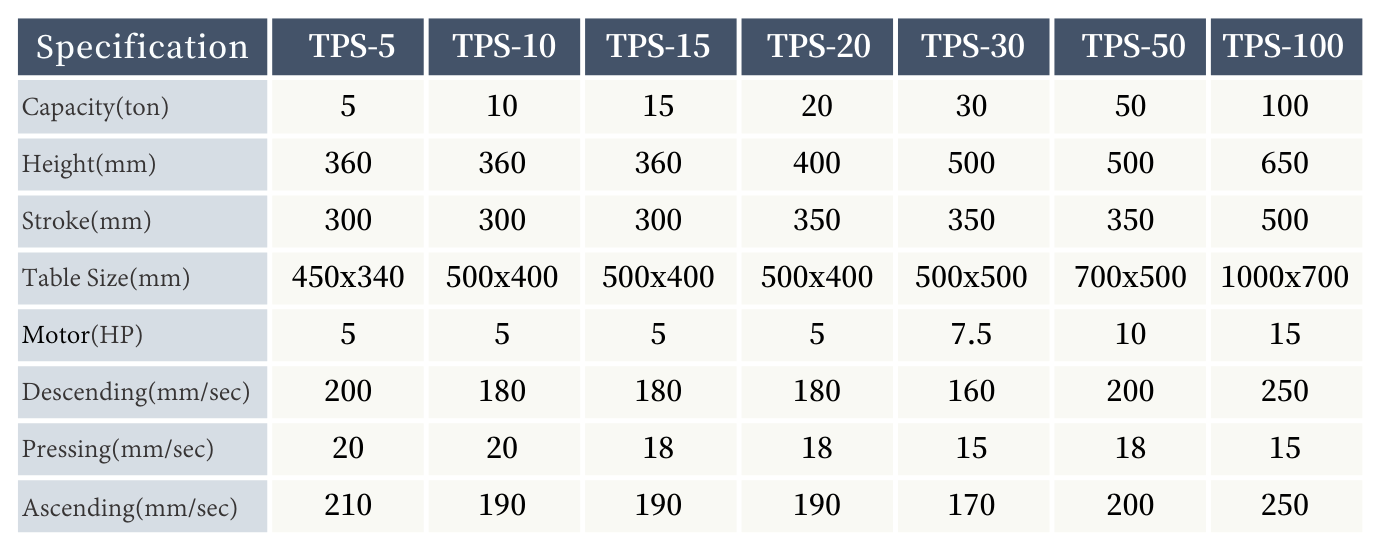

The specification is forging type, if you need deep drawing type, please contact us.
※Size of table and specification can be customized. Please specify when ordering.※
