TPC-C-type high-speed hydraulic presses

Pressure Capacity: 1 to 20 tonnes.
Control type: Standard /Digital(with 7-inch HMI to control capacity, speed, and position)

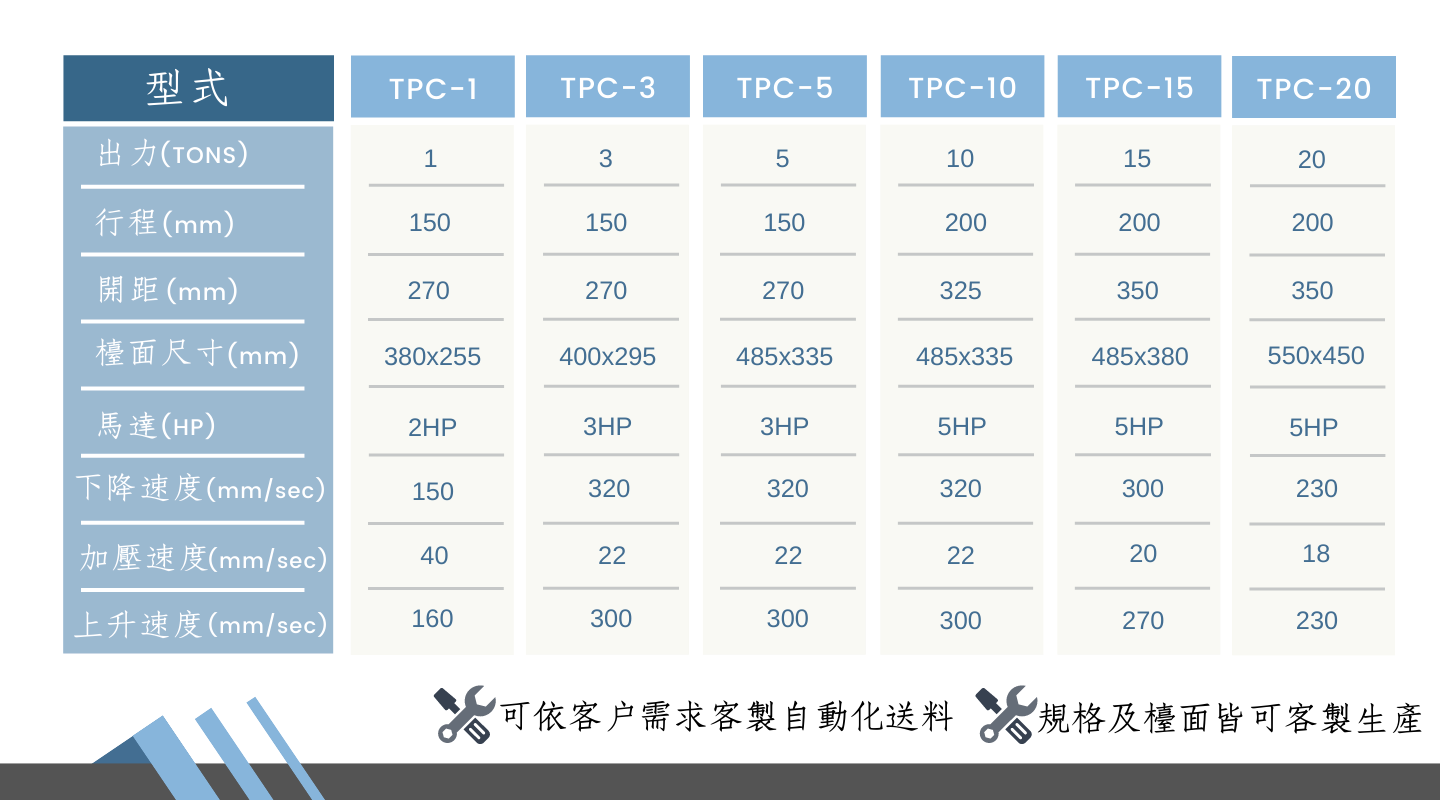

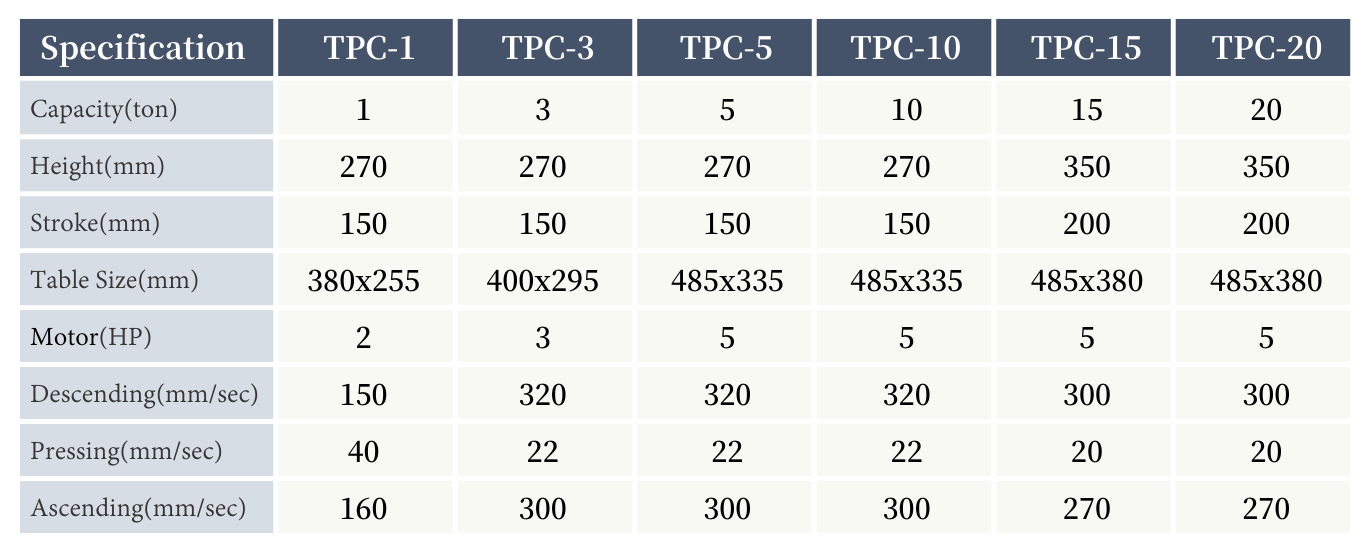

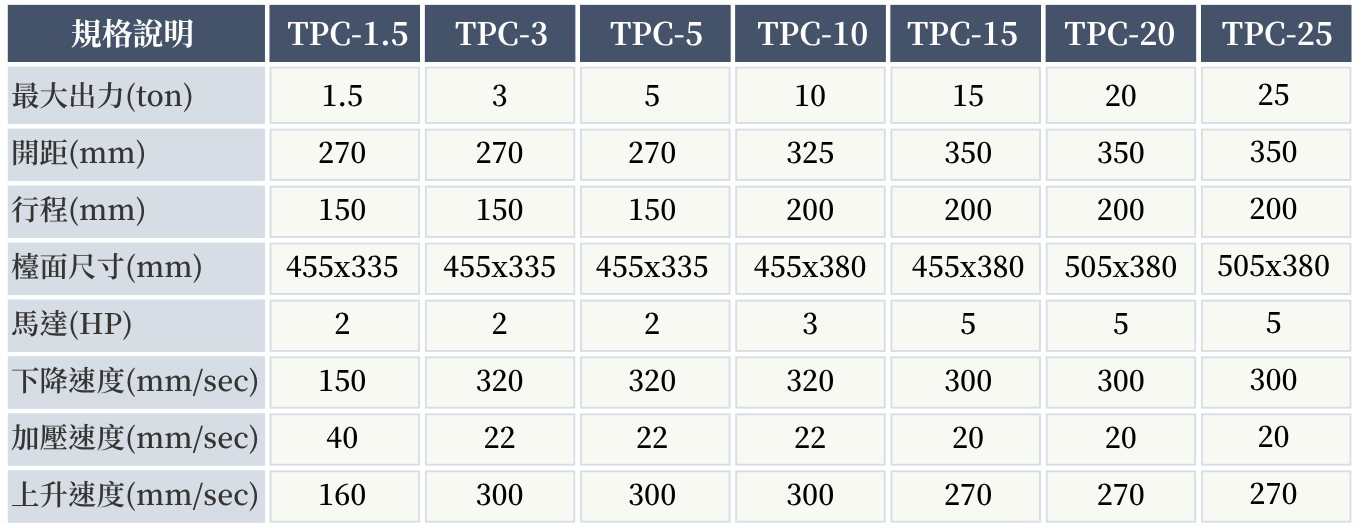

Specification
Stock
Inquiry
Share
Hydraulic Press Description Specifications Reference video
Description
(1) Body of the hydraulic machine is a C-type design to offer a flexible 3-way operating space for (un)loading workpieces and molds.
(2) Able to take production orders for C-type hydraulic presses capacity between 1 and 20 tonnes.
(3) Flexible operating space design for (un)loading.
(4) Easy operation/ High speed/ High safety/ Good quality/ Less consumables.
(5) Precise mechanical BDC, position can be adjusted easily.
(6) Hidden oil tank design combined with hidden wheels for easy transportation.

Control type:
  • Standard
    -Two Hands Start Buttons
    -Manual/Auto Operation
    -Timmer
    -Counter
    -Quickly to precise adjustment of Oil pressure, head punch location, and lower dead point


  • Digital
    -7-inch HMI to control capacity, speed, and position
    -Position sensor
    -Memory parameter setting(It's can be set various mold of capacity, speed, and position)
    -Ultra-low noise and energy saving

Optional Accessories

  • Safety Light Curtain
  • Load Cell (Pressure Sensing System)
  • Vibratory Feeder
  • Feeding Mechanism
  • Automated Integration
  • Material Ejector
  • Slide Table Mechanism
  • Quick Die Changer
  • Drop Hole
Scope of application:
  • Punching
  • Cutting
  • Riveting
  • Bearing inserting
  • PE sheet trimming
  • Parts riveting
Applicable industries:
  • Electronics and optoelectronics
  • Bicycle manufacturing
  • Fitness equipment manufacturing
  • Automotive manufacturing
  • Hand tools
  • Hardware manufacturing

The specification is forging type, if you need deep drawing type, please contact us.

※Size of table and specification can be customized. Please specify when ordering.※
